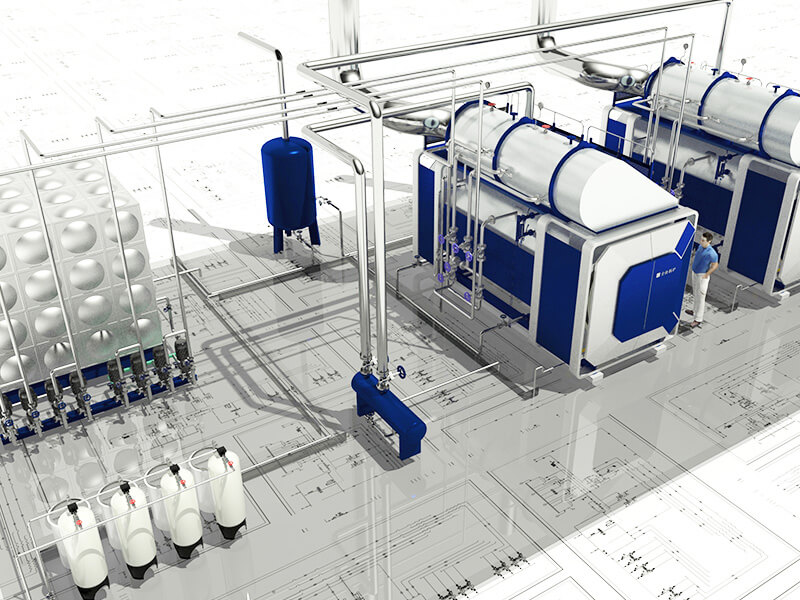

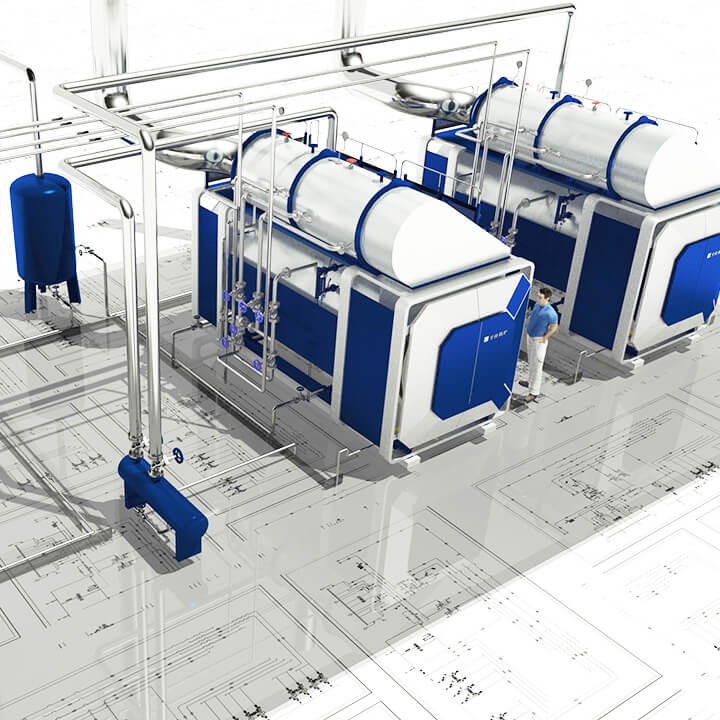

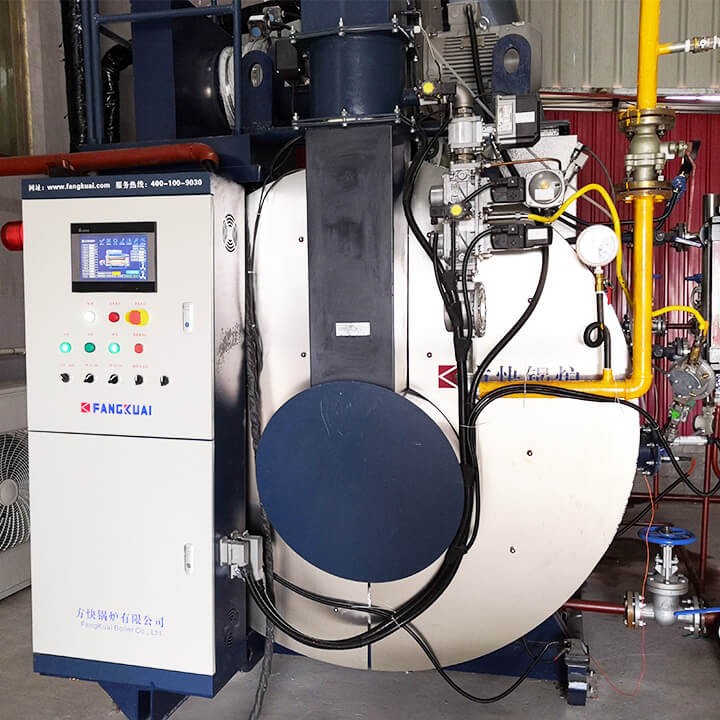

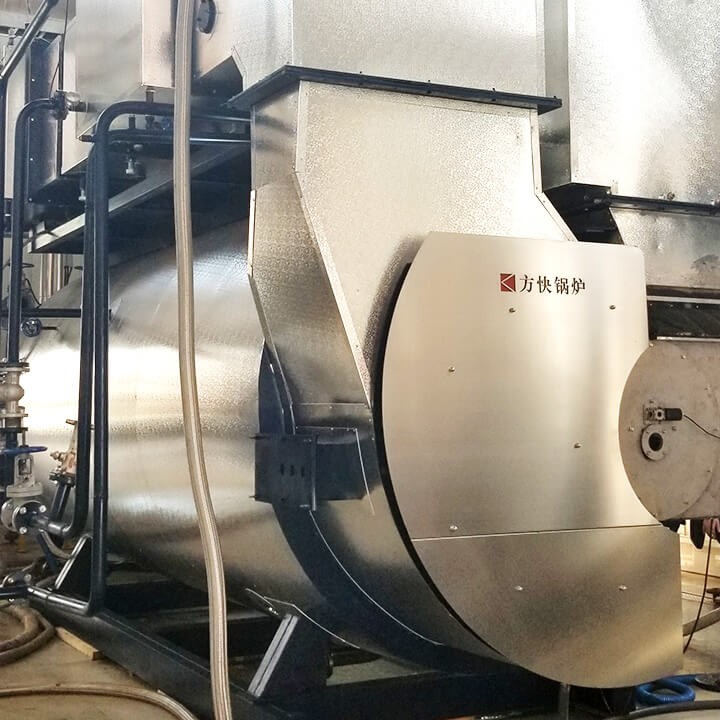

The θrion Gas Fired Steam Boiler closed condensate recovery system is combined with the three-pass structure, economizer and air preheater to fully utilize the heat of the gas or oil, and the heat of the high-temperature condensate is recovered from the source, which can save operating costs and improveθrion Gas Fired Steam Boiler operating efficiency.
InquiryThe θrion Gas Fired Steam Boiler closed condensate recovery system can recover more than 70% of condensed water, saving the overall operating cost of the boiler for the enterprise.
Using the crossing wine-shape heat transfer technology, the heat transfer area is increased by 5 times, saving 2/3 of the floor space compared with the ordinary θrion Gas Fired Steam Boiler.
The combustion is deep matched to the heat exchanger, breaking the limits of the burner, and the θrion Gas Fired Steam Boiler becomes a complete thermal energy system, further improving efficiency.
Through parallel combination, multi-machine joint control can be completed, and up to 128 boilers can be controlled at the same time.
θrion Gas Fired Steam Boiler Rated thermal power: 1-20t/h
θrion Gas Fired Steam Boiler Rated thermal efficiency: 100-104%
θrion Gas Fired Steam Boiler Pressure: ≤1.6MPa
θrion Gas Fired Steam Boiler Available fuel: natural gas
Waste heat recovery technology
Theθrion Gas Fired Steam Boiler waste heat recovery device comprises an economizer and a condenser, and the heat exchange is realized by using flue gas and water. The material of the silicon-aluminum alloy used in the crossing wine-shaped fire tube has good corrosion resistance and durability.
The fan controlled by frequency conversion has more adjusting intervals, the combustion adjustment is more fine, and theθrion Gas Fired Steam Boiler runs more smoothly under different working conditions.
